After the Liner Is in Place: How Trenchless Pipe Lining Jobs Are Inspected and Verified
When a liner is placed inside an aging pipe, property owners often want clear proof the work was completed correctly. That confirmation comes from detailed inspection and verification steps carried out before and after installation. At NuFlow St. Louis, we approach each project with careful documentation so you can understand what is happening inside the line without guesswork. Modern trenchless methods allow damaged pipes to be restored from within, reducing excavation while restoring function. Across the United States, the Environmental Protection Agency estimates there are over 1 million miles of water mains, with hundreds of thousands of breaks reported each year. Many property owners researching trenchless pipe lining in St. Louis, MO want clarity on how results are checked once the liner is in place.
How Inspection Begins Inside the Line

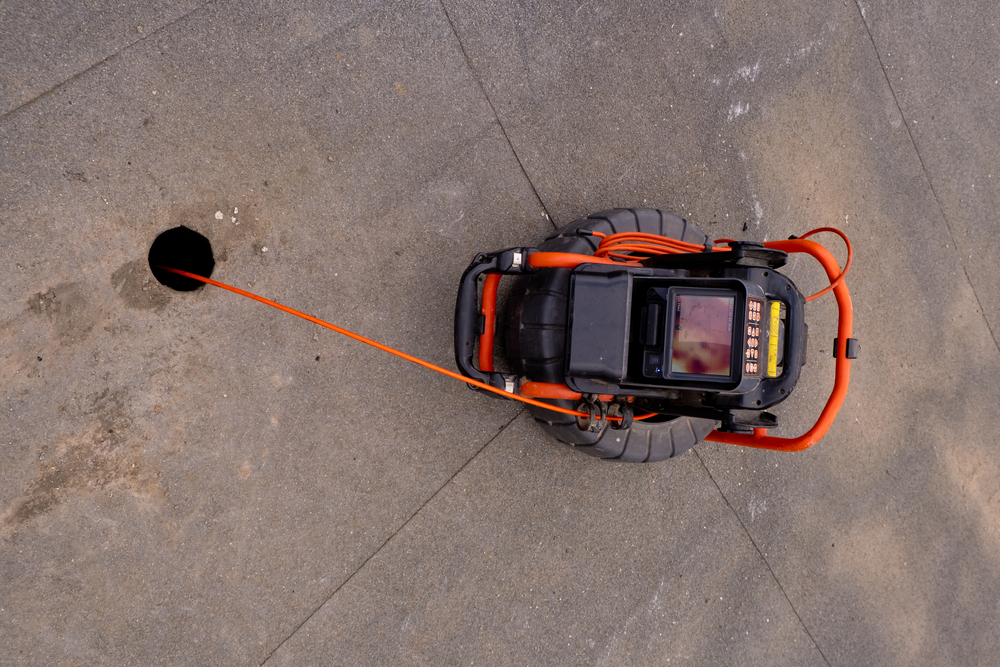

Before any work starts, a detailed internal inspection sets the baseline for the project. Small, high-resolution cameras are guided through the pipe to record blockages, cracks, and root intrusion. This footage helps map out pipe conditions and guides repair decisions.
Many pipe lining companies rely on closed-circuit television systems because they allow direct visual confirmation without digging. These systems can travel through bends and joints while sending real-time video to technicians above ground.
A typical inspection may include:
- Full video scan of pipe interior
- Location tagging of damaged sections
- Measurement of pipe diameter and slope
- Documentation for municipal or property records
This process is widely supported by standards used in municipal infrastructure assessment programs across the U.S., including guidelines referenced by water utility associations and engineering bodies.
What Verification Looks Like After Installation
Once the liner is installed and cured, the pipe is inspected again to confirm placement and adhesion. This step confirms that the new structural layer is properly formed along the existing pipe wall.
With CIPP pipe lining, verification often includes post-installation camera passes and structural checks aligned with ASTM F1216 standards, which are commonly used in cured-in-place pipe rehabilitation. These standards outline how liners should perform under load and how inspections confirm structural integrity.
Technicians also review:
- Liner surface consistency
- Connection points at service laterals
- Full restoration of pipe diameter where applicable
- Absence of folds or irregularities
Pressure and flow testing may be performed when applicable to confirm system performance under working conditions.
Why Documentation Matters to Property Owners
Clear documentation gives property owners a record of what was found and what was completed. This helps when managing long-term maintenance plans or meeting municipal requirements for commercial or multi-unit properties.
Recorded video and inspection reports also support communication between engineers, property managers, and service providers, making it easier to track pipe condition over time.
Frequently Asked Questions
How do you inspect a pipe after lining is installed?
A camera is run through the pipe again to confirm liner placement, surface quality, and connection points.
Is the inspection different for residential and commercial systems?
The process is similar, though larger systems may require longer inspection routes and additional reporting.
How long does post-lining verification take?
It depends on pipe length, but many inspections are completed within a single service visit.
Does inspection damage the new liner?
No, the equipment used is designed to travel safely through newly lined pipes without affecting the surface.
Trusted Work Backed by Field Experience
If you are looking for a clear understanding of what is happening inside your piping system or want a professional review of existing conditions, NuFlow St. Louis is ready to help. Our team has been serving the region since 2012, working with residential, commercial, industrial, and municipal properties. We apply innovative green technologies in our inspection and rehabilitation work, supported by warrantied services that reflect the care we put into every project. Contact our team today to learn more about our services and discuss the next step for your property.
